Project Overview

This advanced project creates a compact bedroom climate controller with a round color display and capacitive touch interface that provides:

• 🕐 Real-time clock display with date
• 🌤️ Weather information (current temperature, forecast icon, and description)
• 🌡️ Indoor climate monitoring (temperature and humidity)
• 🔥 Thermostat control with multiple preset modes (frost, eco, comfort, boost)
• 🎯 Fine-grained temperature adjustment for boost mode
• 🚗 EV battery level monitoring
• 💡 Interactive LED feedback on touch buttons
• 📄 Multi-page interface with heating control page
• 🎨 Context-aware heating status visualization
• 🌈 Status indicator (and mood light?) with NeoPixel LED

This project is for a quick overview of important info on one page and then managing heating in the room. When you get up you can quickly see time/date, outside temperature, forecast and EV battery level (super important, right?).

On the other page are details of the temperature and humidity in the room and control of heating presets. One of the presets can also be modified to set a different temperature.

The project is complete in terms of hardware. The rest are software improvements.

Progress

• ✅ Main Configuration - fully functional
• ✅ 3D Enclosure
• Further improvements
  • ✅ Display Auto Sleep
  • Add Colors
  • ✅ Use NeoPixel for notifications
  • Use LEDs on the touch board for quick status

Future improvement ideas

• Added dimmed start-up as a quick fix for the device rebooting at night
  • It’s good to dim the display at night time for example 🌙😴 so maybe make it configurable
• Add Colors
  • This was ported from Mono OLED so everything is monochromatic - it looks pretty but why not add some colors to our lives 😉
• Use LEDs on the touch board for quick status
  • EV Battery level? Or something else? Just throwing out ideas
• Adding more pages?

Reusability Note

Substitutions are put at the top of the config file, so replacing them for your own sensor entity IDs and climate IDs will get it working for you. Some extra work needed if not all the same component used. Some of the parts are obsolete (Touch Phat) so a different options might be required.

What You’ll Need

Hardware

• 1x DFRobot Beetle ESP32-C6 - Compact ESP32-C6 development board
• 1x GC9A01 based Round LCD - SPI Color Round Display breakout
• 1x Pimoroni Touch pHAT - 6 capacitive touch buttons with RGB LEDs (I2C)
• 1x Adafruit NeoPixel - RGB LED for ambient/notification
• Jumper wires for connections (for testing it)
• USB-C cable (data capable)
• Power supply (USB charger, 5V/1A minimum)
• This will require soldering if you want it properly assembled
• Optional: 3D printer for custom enclosure

Wiring Connections

The OLED display uses SPI bus, Touch breakout uses I2C and Neopixel uses GPIO.

Component	ESP32-C6 GPIO	Notes
SPI Display (GC9A01)
SCK	GPIO23 (SCK)	SPI Clock
MOSI	GPIO22 (MOSI)	SPI Master Out
CS	GPIO16	Chip Select
DC	GPIO05	Data/Command
RESET	GPIO04	Display Reset Pin
BL	GPIO17	Backlight - it can be used to set brightness
I2C Touch pHAT (CAP1166)
3 (GPIO 2)	GPIO06 (SDA)	I2C Data - requires external pull-up resistor
5 (GPIO 3)	GPIO07 (SCL)	I2C Clock - requires external pull-up resistor
ESP32-C6 Built-in
LED	GPIO15	Built-in LED - not used
BOOT	GPIO09	Boot button - not used
NeoPixel (Future)
DIN	GPIO21	Data pin for the LED driver

WARNING ⚠️: I used 3.3K external pull-up resistors to 3.3V for I2C bus - on GPIO06 and GPIO07. The Touch Phat does not have external pull-ups and internal pull-ups on the MCU are too weak. If you don’t do this you’ll be getting weird I2C errors in the logs, phantom touches, etc.

Power Notes:

• All components use 3.3V logic level
• Touch pHAT requires both 3.3V and 5V pins to be connected to power supply. It does not provide power supply it requires power supply
  • 3.3V power input is for power supply for the CAP1166 controller and logic
  • 5V power input is for powering LEDs. It works with 3.3V and I connected it to 3.3V. Since this is for driving LEDs it will not affect overal functionality. LEDs might not be as bright. If you are using some other input device, make sure you check documentation for it. Connecting 5V supply to 3.3V device might ☠️ kill it.
• NeoPixel uses 5V supply, but it supports 3.3V logic level for communication

Software

• ESPHome installed
• Home Assistant with configured weather integration
  • Met.no used, which is used by 82.4% of all users so this should work out of the box.
• Home Assistant entities:
  • Indoor temperature sensor
  • Indoor humidity sensor
  • Climate entity (thermostat/heater)
  • EV Car integration and sensor for battery level
• USB-to-Serial drivers (ESP32-C6 implements USB 2.0 CDC so should work out of the box)

Required Home Assistant Entities

This project requires the following entities in Home Assistant. You’ll need to update the substitutions with your own entity IDs:

• Climate Entity: Thermostat/TRV with preset modes (frost, eco, comfort, boost)
  • Example: climate.bedroom_heater (using Versatile Thermostat integration)
  • Must support preset_mode attribute and climate.set_preset_mode action
• Temperature Sensor: Indoor temperature reading
  • Example: sensor.bedroom_temperature
• Humidity Sensor: Indoor humidity reading
  • Example: sensor.bedroom_humidity
• Weather Integration: Home Assistant weather entity
  • Example: weather.forecast_home
  • Must provide temperature and temperature_unit attributes
• EV Battery Sensor (optional): Electric vehicle battery level
  • Example: sensor.car_battery_level
• Number Entity: Boost preset temperature setting (if using Versatile Thermostat)
  • Example: number.bedroom_heater_preset_boost_temp
• Template Select: To control the notification LED
  • Example: select.open_window_rain_status - see Rain Notification
  • I could have controlled LED from Home Assistant directly I suppose when I got through all the trouble configuring everything there 🙂 in the first place

Additional Files

• Material Design Icons font file - see font component for more comprehensive explanation.
• weather_icon_map.h header file see Info Panel with ESP32 2.8” Display project for details.
• CAP1166 custom component is pulled from github repository so no additional files for this are needed

Project Photos

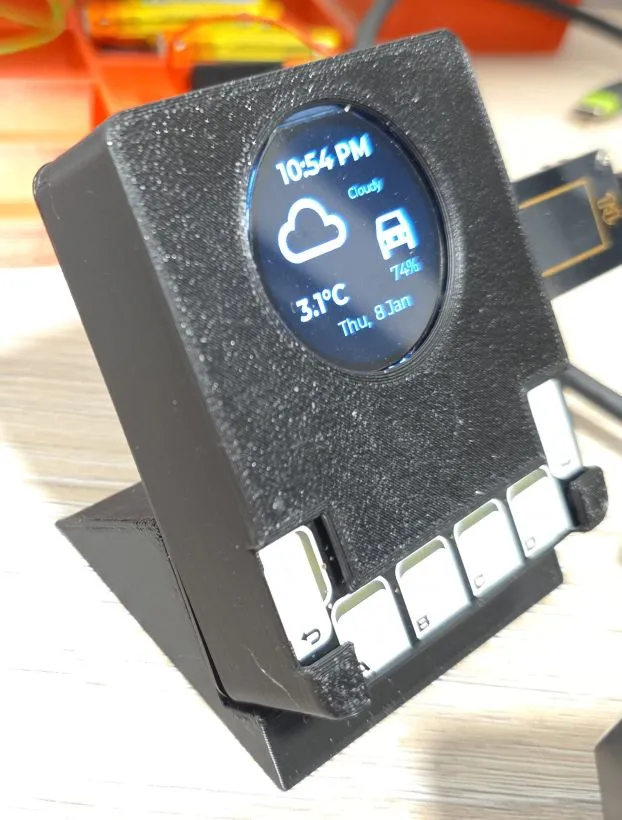

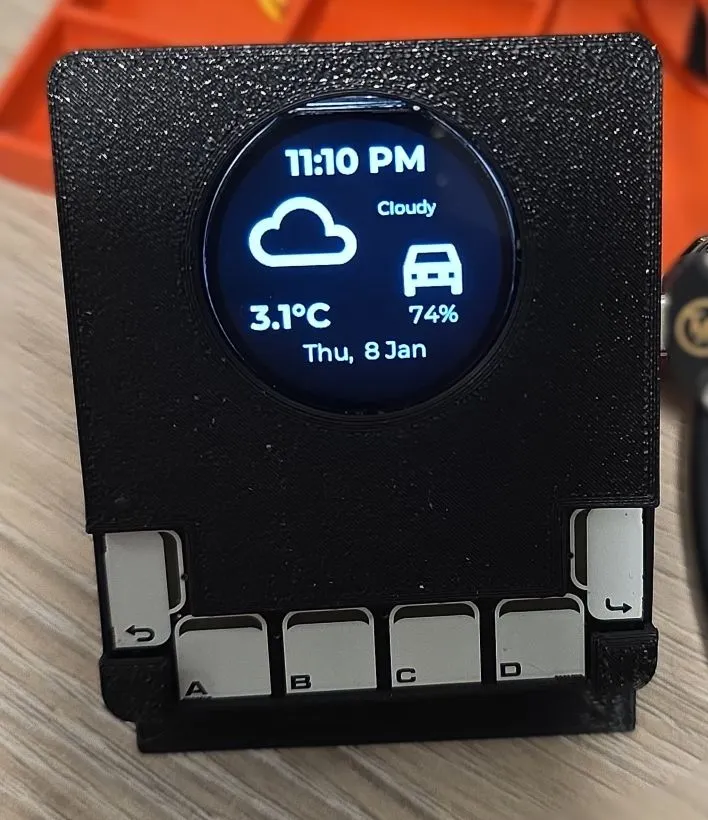

• Info

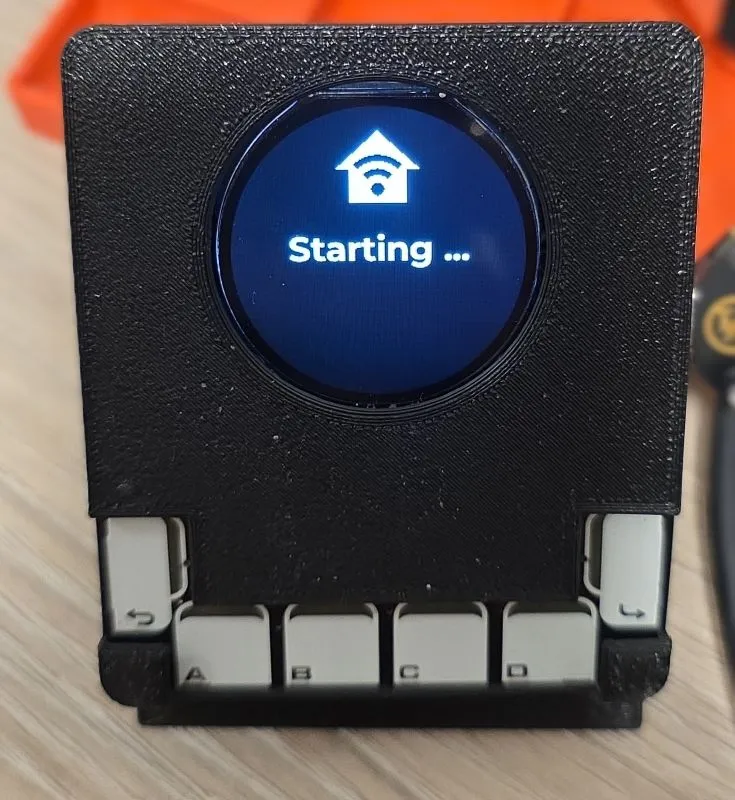

• Starting up

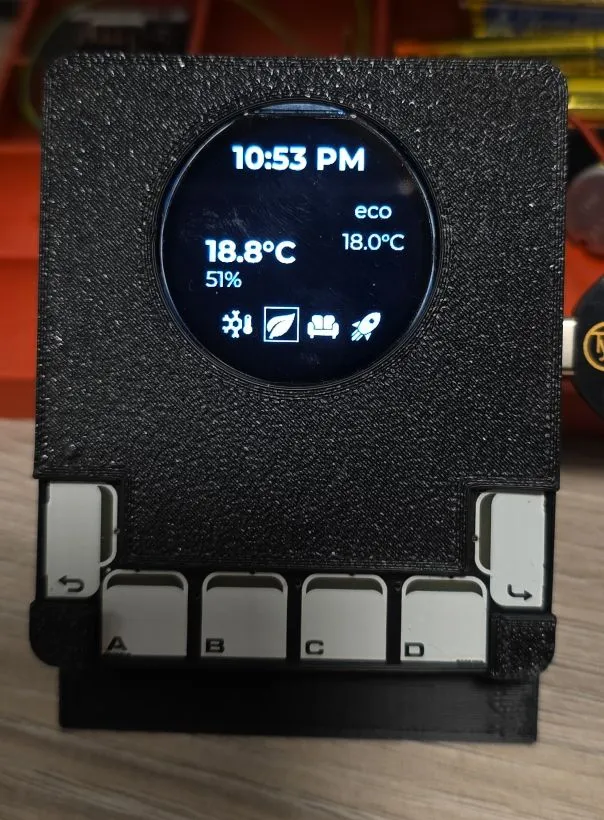

• Heating

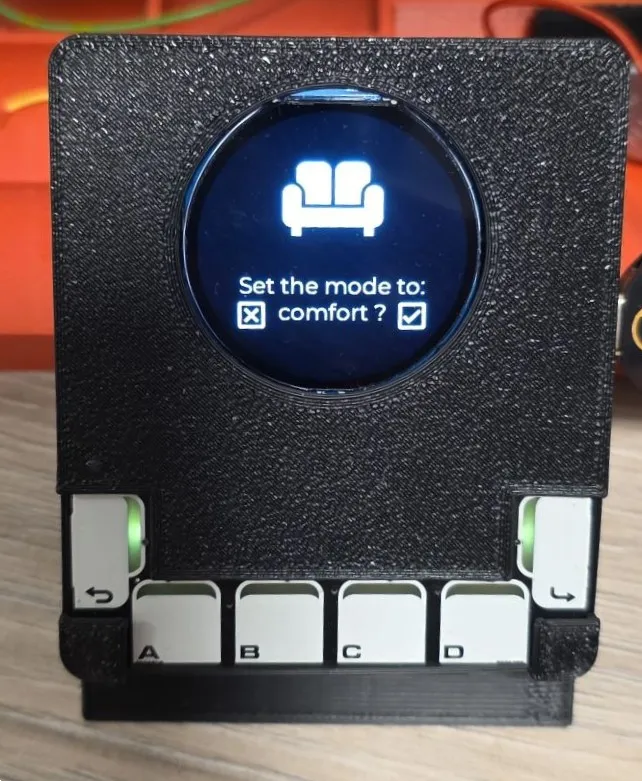

• Set Heating Preset
• Set Boost Temperature

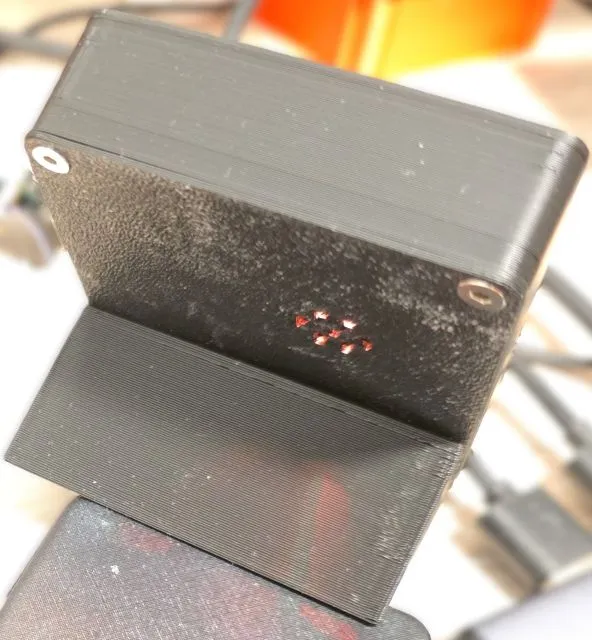

• Neopixel Blue

Detailed wiring diagram showing all connections will be added here.

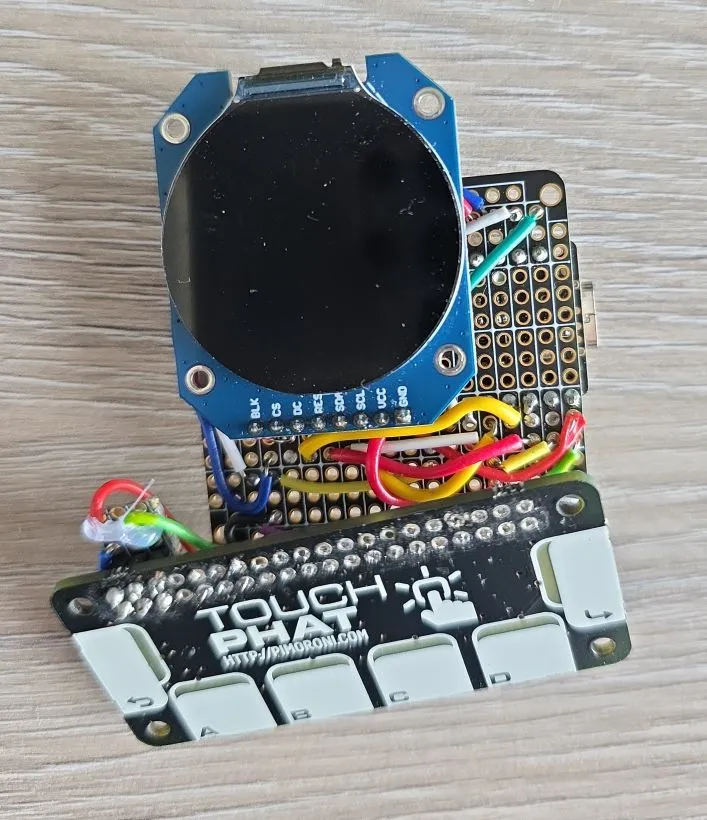

• Soldered controller - front

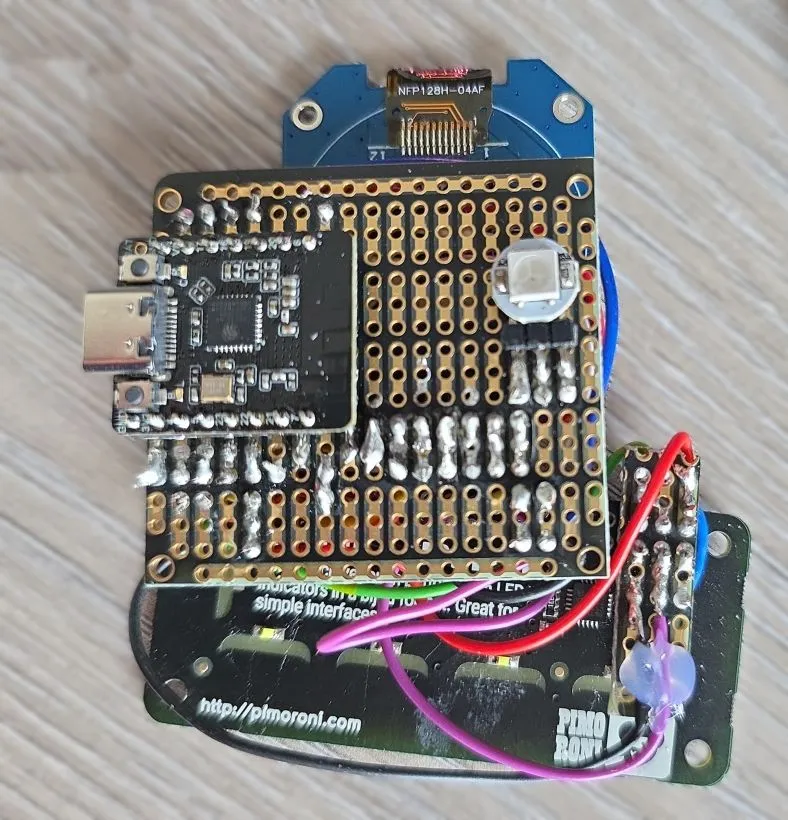

• Soldered controller - back

3D Printed Enclosure

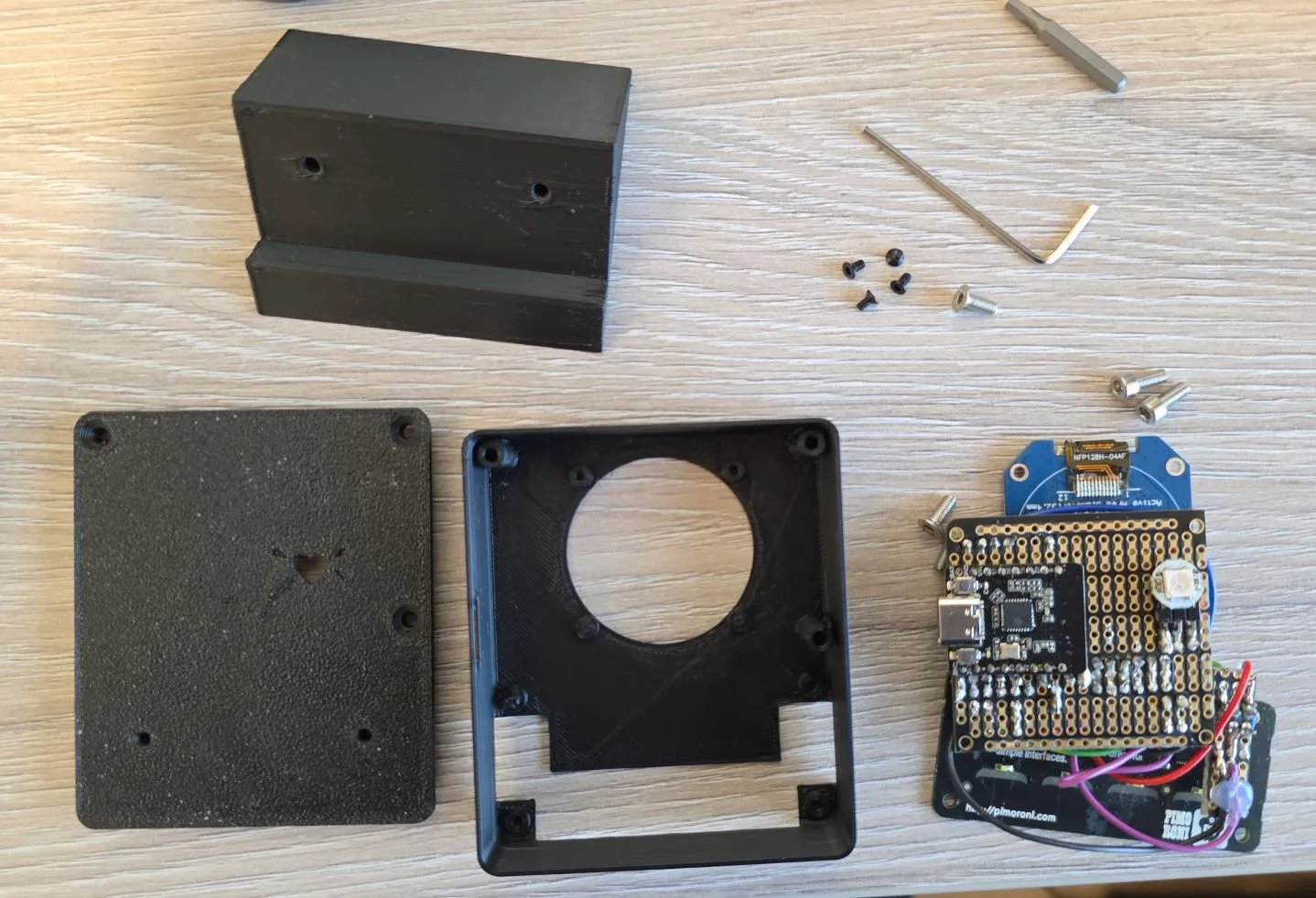

Ready to assemble:

The enclosure houses:

• ESP32-C6 board
• Round LCD display (front-facing)
• Touch pHAT buttons (front-facing)
• NeoPixel LED (for ambient/notification lighting)
• USB-C access for programming and power

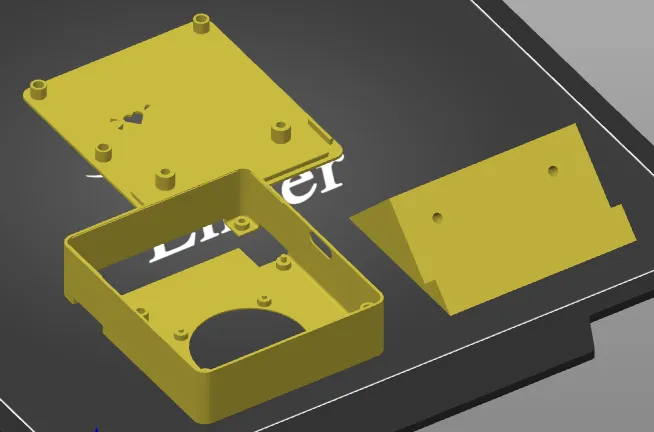

Ready to print STLs:

Download STL files:

• BedroomControllerBox.stl
• BedroomControllerLid.stl
• BedroomControllerStand.stl

ESPHome Configuration

Prerequisites

Before using this configuration, ensure you have:

1. Home Assistant with the following configured:
   • Weather integration (provides weather.forecast_home entity)
   • Climate entity with preset mode support
   • Indoor temperature and humidity sensors (Zigbee or other)
   • A climate entity for heating control
   • EV battery sensor integration
2. Material Design Icons font file saved in your ESPHome directory as assets/materialdesignicons-webfont.ttf
3. The weather_icon_map.h header file

Secrets File Setup

Create a secrets.yaml file in your ESPHome directory with your credentials:

wifi_ssid: "Your_WiFi_SSID"
wifi_password: "Your_WiFi_Password"

bedroom2_controller_api: "your generated api key"
bedroom2_controller_ota: "your ota password"

For more information on using secrets in ESPHome, refer to the ESPHome documentation.

Main Configuration File

If you’re using ESPHome Device Builder create your New Device. Or if you’re using command line create your yaml file (e.g. bedroom-controller.yaml) Then use the following file as a guide (details on how to customize it are below).

Download the full configuration: bedroom-controller.yaml

esphome:
  name: bedroom2-controller
  friendly_name: bedroom2-controller
  includes:
    - weather_icon_map.h
  on_boot:
    - priority: 1
      then:
      - light.control:
          id: backlight
          brightness: 20%
      - delay: 5s
      - globals.set:
          id: my_boot_in_progress
          value: !lambda |-
            return id(my_boot_in_progress) >= 2 ? 2 : id(my_boot_in_progress);


esp32:
  variant: esp32c6

# Enable logging
logger:
  level: WARN

# Enable Home Assistant API
api:
  encryption:
    key: !secret bedroom2_controller_api

ota:
  - platform: esphome
    password: !secret bedroom2_controller_ota

wifi:
  ssid: !secret wifi_ssid
  password: !secret wifi_password

  on_connect:
    - delay: 5s
    - globals.set:
          id: my_boot_in_progress
          value: !lambda |-
            return id(my_boot_in_progress) >= 1 ? 1 : 0;

substitutions:
  heater: bedroom_heater                # Climate entity (without climate. prefix)
  car_battery_level: ev_battery_level   # EV battery sensor (without sensor. prefix)
  indoor_temp: bedroom_temperature      # Indoor temp sensor (without sensor. prefix)
  indoor_humid: bedroom_humidity        # Indoor humidity sensor (without sensor. prefix)
  rain_alert: select.open_window_rain_status # status of rain alert (or any other alert)
  clk_pin: GPIO23
  mosi_pin: GPIO22
  #low power i2c
  sda_pin: GPIO06
  scl_pin: GPIO07
  disp_cs_pin: GPIO16
  disp_dc_pin: GPIO05
  disp_bl_pin: GPIO17
  disp_reset_pin: GPIO04
  neopixel_pin: GPIO21

external_components:
    - source: github://barbarachbc/esphomecomponents
      components: [ cap1166 ]
      refresh: 5min

globals:
  - id: my_boot_in_progress
    type: int
    restore_value: no
    initial_value: '3'
  - id: my_forecast_desc
    type: std::string
    restore_value: no
    initial_value: '"Updating ..."'
  - id: my_forecast_icon
    type: std::string
    restore_value: no
    initial_value: '""'
  - id: my_outside_temp
    type: std::string
    restore_value: no
    initial_value: '"_.__C"'
  - id: selecting_heating_preset
    type: std::string
    restore_value: no
    initial_value: '""'
  - id: changing_heating_temp
    type: float
    restore_value: no
    initial_value: '0'

script:
  - id: update_weather
    then:
      - globals.set:
          id: my_boot_in_progress
          #finally connected to Home Assistant
          value: '0'
      - globals.set:
          id: my_forecast_icon
          value: !lambda return weather_icon_map[id(forecast_desc).state.c_str()].c_str();
      - globals.set:
          id: my_forecast_desc
          value: !lambda return weather_desc_map[id(forecast_desc).state.c_str()].c_str();
  - id: update_outside_temp
    then:
      - globals.set:
          id: my_outside_temp
          value: !lambda return str_sprintf("%.1f%s", id(outside_temperature).state, id(outside_temperature_unit).state.c_str());
  - id: a_button_click
    then:
      - if:
          condition:
            - lambda: return id(changing_heating_temp) > 0;
          then:
            - globals.set:
                id: changing_heating_temp
                value: !lambda |-
                  if(id(changing_heating_temp) <= 15){
                    return 15.0;
                  } else {
                    return id(changing_heating_temp) - 0.5;
                  }
          else:
            - script.execute:
                id: change_preset
                preset: "frost"
  - id: d_button_click
    then:
      - if:
          condition:
            - lambda: return id(changing_heating_temp) > 0;
          then:
            - globals.set:
                id: changing_heating_temp
                value: !lambda |-
                  if(id(changing_heating_temp) >= 28){
                    return 28.0;
                  } else {
                    return id(changing_heating_temp) + 0.5;
                  }
          else:
            - script.execute:
                id: change_preset
                preset: "boost"
  - id: change_preset
    parameters:
      preset: string
    then:
      - if:
          condition:
            and:
              - display.is_displaying_page: page_heating
              - lambda: return id(selecting_heating_preset) == "" && id(changing_heating_temp) <= 0;
              - not:
                  text_sensor.state:
                    id: indoor_temp_preset
                    state: !lambda return preset;
          then:
            - globals.set:
                id: selecting_heating_preset
                value: !lambda return preset;
            - component.update: my_display
            - light.turn_on: my_light_forward
            - light.turn_on: my_light_back
  - id: accept_button_click
    then:
      - if:
          condition:
              - lambda: return id(selecting_heating_preset) == "" && id(changing_heating_temp) <= 0;
          then:
            - display.page.show_next: my_display
            - component.update: my_display
      - if:
          condition:
            - lambda: return id(selecting_heating_preset) != "";
          then:
            - script.execute:
                id: set_indoor_preset
                preset: !lambda return id(selecting_heating_preset);
            - globals.set:
                id: selecting_heating_preset
                value: '""'
            - component.update: my_display
            - light.turn_off: my_light_forward
            - light.turn_off: my_light_back
      - if:
          condition:
            - lambda: return id(changing_heating_temp) > 0;
          then:
            - script.execute:
                id: change_preset_amount
                preset: "boost"
                set_to: !lambda return id(changing_heating_temp);
            - globals.set:
                id: changing_heating_temp
                value: '0'
            - component.update: my_display
            - light.turn_off: my_light_forward
            - light.turn_off: my_light_back
            - light.turn_off: my_light_a
            - light.turn_off: my_light_d
  - id: clear_globals_and_lights
    then:
      - globals.set:
          id: selecting_heating_preset
          value: '""'
      - globals.set:
          id: changing_heating_temp
          value: '0'
      - light.turn_off: my_light_forward
      - light.turn_off: my_light_back
      - light.turn_off: my_light_a
      - light.turn_off: my_light_d
  - id: cancel_button_click
    then:
      - if:
          condition:
              - lambda: return id(selecting_heating_preset) == "" && id(changing_heating_temp) <= 0;
          then:
            - display.page.show_previous: my_display
            - component.update: my_display
          else:
            - script.execute: clear_globals_and_lights
            - component.update: my_display
  - id: set_indoor_preset
    parameters:
      preset: string
    then:
      - homeassistant.action:
          action: climate.set_preset_mode
          data:
            entity_id: climate.${heater}
          data_template:
            preset_mode: !lambda return preset;
  - id: change_preset_amount
    parameters:
      preset: string
      set_to: float
    then:
      - if:
          condition:
            - lambda: return preset == "boost";
          then:
            - number.set:
                id: indoor_temp_preset_boost
                value: !lambda return set_to;
  - id: touch_d_long_click
    then:
      - if:
          condition:
              - lambda: return id(selecting_heating_preset) == "" && id(changing_heating_temp) <= 0;
          then:
              - globals.set:
                  id: changing_heating_temp
                  #round to 0.5
                  value: !lambda return round(id(indoor_temp_preset_boost).state * 2.0)/2.0;
              - light.turn_on: my_light_forward
              - light.turn_on: my_light_back
              - light.turn_on: my_light_a
              - light.turn_on: my_light_d
  - id: idle_screen_reset
    mode: restart
    then:
      - if:
          condition:
            number.in_range:
              id: display_timeout
              below: 1
          then:
            - light.turn_on: backlight
          else:
            - light.turn_on: backlight
            - delay: !lambda return id(display_timeout).state * 1000;
            # cancel any operation first then switch off the screen
            - script.execute: clear_globals_and_lights
            - display.page.show: page_info
            - light.turn_off: backlight
  - id: update_rain_alert
    parameters:
      status: string
    then:
      - if:
          condition:
            - lambda: return status == "ALLGOOD";
          then:
            - light.turn_off: my_alert_light
      - if:
          condition:
            - lambda: return status == "RAINING";
          then:
            - light.control:
                id: my_alert_light
                effect: e_pulse_rain
                state: on
                red: 100%
                green: 12%
                blue: 12%
      - if:
          condition:
            - lambda: return status == "RAINSOON" || status == "RAINCOMING";
          then:
            - light.control:
                id: my_alert_light
                effect: e_pulse_rain_coming
                state: on
                red: 100%
                green: 12%
                blue: 12%
  - id: on_touch_release
    then:
      - light.control:
          id: backlight
          brightness: 100%
      - script.execute: idle_screen_reset

text_sensor:
  - platform: homeassistant
    id: outside_temperature_unit
    entity_id: weather.forecast_home
    attribute: temperature_unit
    internal: true
    on_value:
      then:
        - script.execute: update_outside_temp

  - platform: homeassistant
    id: forecast_desc
    entity_id: weather.forecast_home
    internal: true
    on_value:
      then:
        script.execute: update_weather

  - platform: homeassistant
    id: indoor_hvac_action
    attribute: hvac_action
    entity_id: climate.${heater}
    internal: true

  - platform: homeassistant
    id: indoor_temp_preset
    attribute: preset_mode
    entity_id: climate.${heater}
    internal: true

  - platform: homeassistant
    id: open_window_rain_alert
    entity_id: ${rain_alert}
    internal: true
    on_value:
      then:
        - script.execute:
            id: update_rain_alert
            status: !lambda return id(open_window_rain_alert).state;

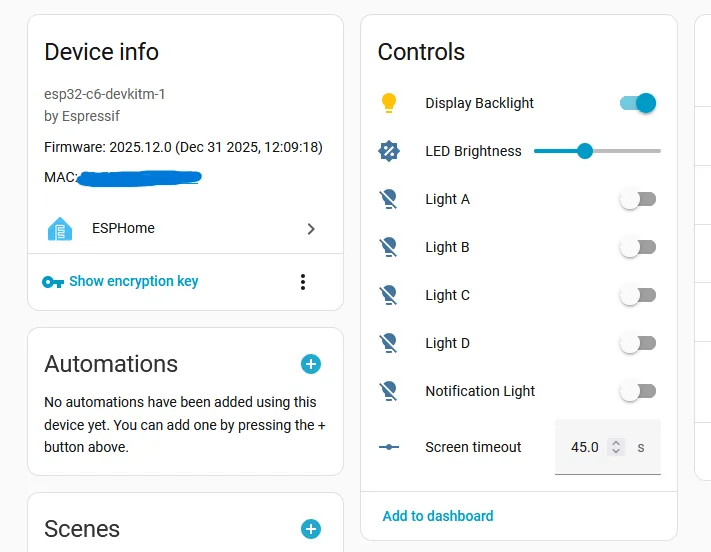

number:
  - platform: template
    name: Screen timeout
    optimistic: true
    id: display_timeout
    unit_of_measurement: "s"
    initial_value: 45
    restore_value: true
    min_value: 0
    max_value: 7200
    step: 5
    mode: box
    on_value:
      then:
        script.execute: idle_screen_reset
  - platform: template
    name: LED Brightness
    optimistic: true
    id: led_brightness
    unit_of_measurement: "%"
    initial_value: 40
    restore_value: true
    min_value: 0
    max_value: 100
    step: 5
    icon: mdi:brightness-percent
    on_value:
      then:
        - lambda: |-
            id(touch_phat).update_all_brightness(0, id(led_brightness).state);
  - platform: homeassistant
    id: battery_level
    entity_id: sensor.${car_battery_level}
    internal: true

  - platform: homeassistant
    id: indoor_temp_preset_boost
    entity_id: number.${heater}_preset_boost_temp
    internal: true

sensor:
  - platform: homeassistant
    id: outside_temperature
    attribute: temperature
    entity_id: weather.forecast_home
    internal: true
    on_value:
      then:
        script.execute: update_outside_temp

  - platform: homeassistant
    id: indoor_temperature
    entity_id: sensor.${indoor_temp}
    internal: true

  - platform: homeassistant
    id: indoor_humidity
    entity_id: sensor.${indoor_humid}
    internal: true

  - platform: homeassistant
    id: indoor_temp_setting
    attribute: temperature
    entity_id: climate.${heater}
    internal: true

time:
  - platform: sntp
    id: my_time
    timezone: Europe/Dublin

spi:
  clk_pin: ${clk_pin}
  mosi_pin: ${mosi_pin}

i2c:
  id: i2c_bus
  sda: ${sda_pin}
  scl: ${scl_pin}

cap1166:
  - id: touch_phat
    address: 0x2C
    touch_threshold: 0x40
    allow_multiple_touches: false
    brightness_configs:
      - led_behavior: DIRECT
        max_brightness: 40%
      - led_behavior: PULSE1
        max_brightness: 40%
      - led_behavior: PULSE2
        max_brightness: 40%
      - led_behavior: BREATHE
        max_brightness: 40%

binary_sensor:
  - platform: cap1166
    id: touch_back
    channel: 0
    on_click:
      min_length: 50ms
      max_length: 350ms
      then:
        - script.execute:
            id: cancel_button_click
    on_release:
      then:
        script.execute: on_touch_release
  - platform: cap1166
    id: touch_A
    channel: 1
    on_click:
      - min_length: 50ms
        max_length: 350ms
        then:
          - script.execute:
              id: a_button_click
    on_release:
      then:
        script.execute: on_touch_release
  - platform: cap1166
    id: touch_B
    channel: 2
    on_click:
      min_length: 50ms
      max_length: 350ms
      then:
        - script.execute:
            id: change_preset
            preset: "eco"
    on_release:
      then:
        script.execute: on_touch_release
  - platform: cap1166
    id: touch_C
    channel: 3
    on_click:
      min_length: 50ms
      max_length: 350ms
      then:
        - script.execute:
            id: change_preset
            preset: "comfort"
    on_release:
      then:
        script.execute: on_touch_release
  - platform: cap1166
    id: touch_D
    channel: 4
    on_click:
      - min_length: 50ms
        max_length: 350ms
        then:
          - script.execute:
              id: d_button_click
      - min_length: 350ms
        max_length: 2000ms
        then:
          - script.execute:
              id: touch_d_long_click
    on_release:
      then:
        script.execute: on_touch_release
  - platform: cap1166
    id: touch_forward
    channel: 5
    on_click:
      min_length: 50ms
      max_length: 350ms
      then:
        - script.execute:
            id: accept_button_click
    on_release:
      then:
        script.execute: on_touch_release

output:
  - platform: ledc
    pin: ${disp_bl_pin}
    id: backlight_pwm

light:

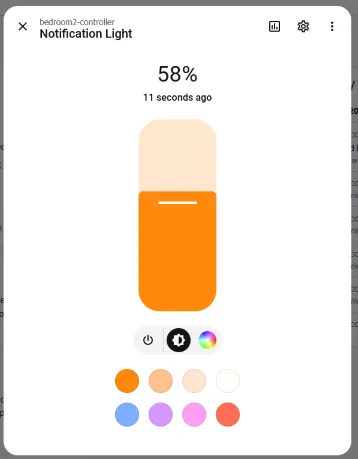

  - platform: esp32_rmt_led_strip
    id: my_alert_light
    chipset: ws2812
    num_leds: 1
    rgb_order: GRB
    name: "Notification Light"
    restore_mode: ALWAYS_OFF
    pin: ${neopixel_pin}
    effects:
      - pulse:
          name: "e_pulse_rain"
          transition_length: 500ms
          update_interval: 500ms
          max_brightness: 70%
      - pulse:
          name: "e_pulse_rain_coming"
          transition_length: 500ms
          update_interval: 2s
          max_brightness: 70%
  - platform: monochromatic
    output: backlight_pwm
    name: "Display Backlight"
    id: backlight
    restore_mode: ALWAYS_ON
    # if it's done through Home Assistant (manually or through automation)
    on_turn_on:
      then:
        script.execute: idle_screen_reset
  #NOTE: touch phat has them connected inversly
  - id: my_light_forward
    platform: cap1166
    internal: true
    channel: 0
    led_behavior: PULSE2
  - id: my_light_d
    platform: cap1166
    name: "Light D"
    channel: 1
    led_behavior: DIRECT
  - id: my_light_c
    name: "Light C"
    platform: cap1166
    channel: 2
    led_behavior: DIRECT
  - id: my_light_b
    platform: cap1166
    name: "Light B"
    channel: 3
    led_behavior: DIRECT
  - id: my_light_a
    platform: cap1166
    name: "Light A"
    channel: 4
    led_behavior: DIRECT
  - id: my_light_back
    platform: cap1166
    internal: true
    channel: 5
    led_behavior: PULSE2

font:
  - id: value_med
    file:
      type: gfonts
      family: Montserrat
    size: 20
    bpp: 4
  - id: value_small
    file:
      type: gfonts
      family: Montserrat
    size: 14
    bpp: 2
  - id: value_large
    file:
      type: gfonts
      family: Montserrat
      weight: bold
    size: 28
    bpp: 4
  - id: mdi_small
    file: assets/materialdesignicons-webfont.ttf
    size: 32
    bpp: 4
    glyphs: [
      "\U000F1A71", # snowflake-thermometer
      "\U000F032A", # leaf
      "\U000F04B9", # sofa
      "\U000F14DE", # rocket-launch
      "\U000F0C52", # checkbox-outline
      "\U000F0158", # close-box-outline
      "\U000F0704", # plus-box-outline
      "\U000F06F2", # minus-box-outline
    ]
  - id: mdi_med
    file: assets/materialdesignicons-webfont.ttf
    size: 64
    bpp: 4
    glyphs: [
      "\U000F1807", # mdi-fire-circle
      "\U000F0E1B", # mdi-car-back
    ]
  - id: mdi_large
    file: assets/materialdesignicons-webfont.ttf
    size: 96
    bpp: 4
    glyphs: [
      "\U000F0594", # clear-night
      "\U000F0590", # cloudy
      "\U000F0F2F", # exceptional
      "\U000F0591", # fog
      "\U000F0592", # hail
      "\U000F0593", # lightning
      "\U000F067E", # lightning-rainy
      "\U000F0595", # partlycloudy
      "\U000F0596", # pouring
      "\U000F0597", # rainy
      "\U000F0598", # snowy
      "\U000F067F", # snowy-rainy
      "\U000F0599", # sunny
      "\U000F059D", # windy
      "\U000F059E", # windy-variant
      "\U000F14E4", # sunny-off

      "\U000F1A71", # snowflake-thermometer
      "\U000F032A", # leaf
      "\U000F04B9", # sofa
      "\U000F14DE", # rocket-launch
    ]

image:
  - id: boot_logo
    type: BINARY
    file: mdi:home-automation
    resize: 80x80


display:
#  - platform: ssd1306_spi
#    id: my_display
#    model: "SH1107 128x128"
#    cs_pin: ${disp_cs_pin}
#    dc_pin: ${disp_dc_pin}
#    rotation: 180
  - platform: mipi_spi
    id: my_display
    model: GC9A01A
    cs_pin: ${disp_cs_pin}
    dc_pin: ${disp_dc_pin}
    reset_pin: ${disp_reset_pin}
    show_test_card: true
    invert_colors: true
    color_order: BGR
    buffer_size: 25%
    update_interval: 1s
    rotation: 180
    pages:
      - id: page_info
        lambda: |-
          if (id(my_boot_in_progress) > 0) {
            if(id(my_boot_in_progress)>1)
            {
                it.printf(it.get_width()/2, 114, id(value_large), COLOR_ON, TextAlign::CENTER, "Starting ...");
            }else {
                it.printf(it.get_width()/2, 114, id(value_large), COLOR_ON, TextAlign::CENTER, "Connecting");
            }
            it.image(it.get_width()/2, 50, id(boot_logo), ImageAlign::CENTER);
            return;
          }

          //print time and date
          if (id(my_time).now().is_valid()) {
            it.strftime(it.get_width()/2, 32, id(value_large), COLOR_ON, TextAlign::CENTER, "%I:%M %p", id(my_time).now());
            it.strftime(it.get_width()/2, 194, id(value_med), COLOR_ON, TextAlign::CENTER, "%a, %e %b", id(my_time).now());
          }

          it.printf(24, 42, id(mdi_large), COLOR_ON, id(my_forecast_icon).c_str());
          it.printf(160, 64, id(value_small), COLOR_ON, TextAlign::TOP_CENTER, id(my_forecast_desc).c_str());
          it.printf(24, 144, id(value_large), COLOR_ON, id(my_outside_temp).c_str());

          it.printf(180, 92, id(mdi_med), COLOR_ON, TextAlign::TOP_CENTER, "\U000F0E1B");
          it.printf(180, 152, id(value_med), COLOR_ON, TextAlign::TOP_CENTER, "%.0f%%", id(battery_level).state);

      - id: page_heating
        lambda: |-

          if (id(my_boot_in_progress) > 0) {
            it.printf(it.get_width()/2, 114, id(value_large), COLOR_ON, TextAlign::CENTER, "Connecting");
            it.image(it.get_width()/2, 50, id(boot_logo), ImageAlign::CENTER);
            return;
          }


          const std::string presets[] = {
            "frost", "eco", "comfort", "boost"
          };

          const std::string icons[] = {
            "\U000F1A71", "\U000F032A", "\U000F04B9", "\U000F14DE"
          };

          if(id(selecting_heating_preset) == "" && id(changing_heating_temp) <= 0){
            //print time and date
            if (id(my_time).now().is_valid()) {
              it.strftime(it.get_width()/2, 32, id(value_large), COLOR_ON, TextAlign::CENTER, "%I:%M %p", id(my_time).now());
            }
            auto heating_is_on = id(indoor_hvac_action).state == "heating";
            auto current_temp_preset = id(indoor_temp_preset).state;
            if(heating_is_on){
              it.printf(24, 42, id(mdi_med), COLOR_ON, "\U000F1807");
            }
            it.printf(32, 104, id(value_large), COLOR_ON, "%.1f%s", id(indoor_temperature).state, id(outside_temperature_unit).state.c_str());
            it.printf(32, 136, id(value_med), COLOR_ON, "%.0f%%", id(indoor_humidity).state);

            it.printf(it.get_width() - 48, 110, id(value_med), COLOR_ON, TextAlign::CENTER, "%.1f%s", id(indoor_temp_setting).state, id(outside_temperature_unit).state.c_str());
            it.printf(it.get_width() - 48, 80, id(value_med), COLOR_ON, TextAlign::CENTER, current_temp_preset.c_str());

            //show icons
            const int icon_size = 32;
            auto y = it.get_height() - 2*icon_size;

            for(auto i = 0; i<4; i++){
              auto is_selected = current_temp_preset == presets[i];
              auto x = 48 + icon_size*i + 9*i; auto invert_icon = false;

              if(is_selected){
                if(heating_is_on){
                  invert_icon = true;
                  it.filled_rectangle(x, y-1, icon_size+1, icon_size+1);
                }else{
                  it.rectangle(x, y-1, icon_size+1, icon_size+1);
                }
              }
              it.printf(x, y, id(mdi_small), invert_icon ? COLOR_OFF : COLOR_ON, icons[i].c_str());
            }
          } else if(id(selecting_heating_preset) != ""){
            bool is_selected = false;
            auto y_last_line = it.get_height()/2 + 44;

            for(auto i = 0; i<4; i++){
              if(id(selecting_heating_preset) != presets[i]){
                continue;
              }
              is_selected = true;

              it.printf(it.get_width()/2, it.get_height()/2, id(mdi_large), COLOR_ON, TextAlign::BOTTOM_CENTER, icons[i].c_str());

              it.printf(it.get_width()/2, it.get_height()/2 + 20, id(value_med), COLOR_ON, TextAlign::TOP_CENTER, "Set the mode to:");
              it.printf(it.get_width()/2, y_last_line, id(value_med), COLOR_ON, TextAlign::TOP_CENTER, "%s ?", id(selecting_heating_preset).c_str());
              break;
            }

            if(is_selected){
              //apply
              it.printf(32, y_last_line, id(mdi_small), COLOR_ON, TextAlign::TOP_LEFT, "\U000F0158");
              //cancel
              it.printf(it.get_width()-32, y_last_line, id(mdi_small), COLOR_ON, TextAlign::TOP_RIGHT, "\U000F0C52");
            }

            if(!is_selected){
              id(selecting_heating_preset) = "";
            }
          } else if(id(changing_heating_temp) > 0){


            it.printf(it.get_width()/2, it.get_height()/2, id(mdi_large), COLOR_ON, TextAlign::BOTTOM_CENTER, "\U000F14DE");
            it.printf(it.get_width()/2, it.get_height()/2+12, id(value_large), COLOR_ON, TextAlign::TOP_CENTER, "%.1f", id(changing_heating_temp));

            auto y_last_line = it.get_height()/2 + 44;
            //apply
            it.printf(32, y_last_line, id(mdi_small), COLOR_ON, TextAlign::TOP_LEFT, "\U000F0158");
            //cancel
            it.printf(it.get_width()-32, y_last_line, id(mdi_small), COLOR_ON, TextAlign::TOP_RIGHT, "\U000F0C52");
            //minus
            it.printf(80, y_last_line, id(mdi_small), COLOR_ON, TextAlign::TOP_LEFT, "\U000F06F2");
            //plus
            it.printf(it.get_width() - 80, y_last_line, id(mdi_small), COLOR_ON, TextAlign::TOP_RIGHT, "\U000F0704");
          }

Configuration Breakdown

Substitutions

The configuration uses substitutions to make it easy to adapt to your Home Assistant setup. Update these with your own entity IDs:

substitutions:
  heater: bedroom_heater                # Climate entity (without climate. prefix)
  car_battery_level: ev_battery_level   # EV battery sensor (without sensor. prefix)
  indoor_temp: bedroom_temperature      # Indoor temp sensor (without sensor. prefix)
  indoor_humid: bedroom_humidity        # Indoor humidity sensor (without sensor. prefix)
  rain_alert: select.open_window_rain_status # status of rain alert (or any other alert)

Boot Progress Tracking

The my_boot_in_progress global variable tracks the device startup stages:

• 3: ESP32 starting up
• 2: Boot Finished
• 1: Wifi Connected
• 0: Connected to Home Assistant (Fully connected and ready)

This is controlling boot display. If you look at the code I wasn’t 100% sure of the ordering of events or whether there might be some racing conditions. The boot screen is shown all the way until device connects to Home Assistant.

Climate Control Integration

This configuration is designed to work with the Versatile Thermostat integration custom integration for Home Assistant. Versatile Thermostat provides:

• Multiple preset modes (frost, eco, comfort, boost)
• Individual temperature settings per preset
• Advanced heating strategies
• Comprehensive automation support

Important: If you’re using a different climate integration, you may need to adjust:

• Preset mode names in scripts
• The indoor_temp_preset_boost number entity reference
• Preset mode icons

Touch Button Functions

Information Page (page_info)

• FORWARD: Navigates to the heating page
• BACK: Navigates to the heating page (same as forward, only 2 pages)

Heating Page (page_heating)

Normal Mode:

• FORWARD: Navigate to info page
• BACK: Navigate to info page (same as forward, only 2 pages)
• Button A: Select “frost” preset
• Button B: Select “eco” preset
• Button C: Select “comfort” preset
• Button D (short press): Select “boost” preset
• Button D (long press): Enter temperature adjustment mode for boost

Preset Confirmation Mode:

• FORWARD: Confirm preset change
• BACK: Cancel preset change
• Buttons A-D: No function

Temperature Adjustment Mode:

• FORWARD: Confirm new temperature
• BACK: Cancel temperature change
• Button A: Decrease by 0.5°C (min 15°C)
• Button D: Increase by 0.5°C (max 28°C)
• Buttons B, C: No function

LED Feedback

The Touch pHAT LEDs provide visual feedback:

• Normal mode: LEDs off
• Preset confirmation: Forward and Back LEDs pulsing
• Temperature adjustment: Forward, Back, A, and D LEDs lit

LED brightness can be adjusted via the “LED Brightness” number entity (0-100%).

Display Pages

Page 1: Information Display

• Current time (12-hour format with AM/PM)
• Current date (day, date, month)
• Weather icon and description
• Outside temperature
• EV battery level with car icon

Page 2: Heating Control

• Current time (top-right)
• Heating active indicator (top-left, only when heating)
• Indoor temperature (large, left side)
• Indoor humidity (below temperature)
• Target temperature setting (right side)
• Current preset mode name (below target)
• Preset mode icons at bottom (highlighted when active)

Weather Integration

This project assumes you have a working weather integration in Home Assistant, typically configured as weather.forecast_home. The configuration retrieves:

• Current temperature (from temperature attribute)
• Temperature unit (C or F)
• Weather condition (for icon mapping)

Idle Screen Timeout

Screen will be turned off if the device is idle for more than configured timeout - Screen Timeout - display_timeout. By default it is configured to 45s but it can go from 0 - 7200 (2hrs). If set to 0, the screen won’t go to sleep. The configuration is in seconds.

Implementation Details

The script used is: idle_screen_reset and it resets the timer when called. It is a very simple script:

• it is configured in restart mode so previus execution is cancelled when called and the new one is initiated
• it checks if display_timeout is turned off and just keeps the backlight on in that case
• otherwise
  • it turns on the backlight (making sure it’s ON)
  • waits for the configured timeout. Lambda needs to returns value in ms - hence multiplying the configuration by 1000
  • and it turnes off the backlight
  • note that if the script is called before it finishes this, the current execution will be cancelled and the new will be started

NOTE: The delay operation is smart and it is async so it does not block anything

The script is executed in the following cases:

• when dispay_timeout is set - either the timeout is changed or, on restart, when display timeout is set from Home Assistant
• when any of the touch buttons is pressed (on_release)
• when the Display Backlight is manually (or through automation) turned on from Home Assistant

On boot - the backlight is set to 20% brightness. The brightness is set to 100% only when one of the touch buttons is used.

Rain Notification

NeoPixel is going to be flashing red if it is raining or the rain is coming soon and windows are open. It will flash quickly if it’s raining and windows are open, and it will flash slower if the rain is upcoming.

I have an automation setup that runs every hour (5th minute of every hour) and checks the weather forecast. It gets forecast data and sets 3 variables based on the hourly forecast.

• is_raining: The first record is current precipitation.
• about_to_rain: batch(2) | first splits the forecast information in lists of two and takes the first list (which is the forecast for the first 2 hours) and counts how many items have precipitation greater than 0. Essentially it is true if it is currently raining or it will rain in the next hour.
• rain_soon: same as previous, it is true if it is currently raining or it will rain in next 4 hours.

alias: Rain Soon?
description: Setting variables that are related to checking rain
triggers:
  - trigger: time_pattern
    hours: "*"
    minutes: "5"
conditions: []
actions:
  - action: weather.get_forecasts
    target:
      entity_id: weather.forecast_home
    data:
      type: hourly
    response_variable: forecast_data
  - variables:
      is_raining: >-
        {{(forecast_data['weather.forecast_home']['forecast'] |
        first).precipitation > 0 }}
      about_to_rain: >-
        {{forecast_data['weather.forecast_home']['forecast'] | batch(2) | first
        | selectattr('precipitation', '>', 0) | list | count > 0 }}
      rain_soon: >-
        {{forecast_data['weather.forecast_home']['forecast'] | batch(5) | first
        | selectattr('precipitation', '>', 0) | list | count > 0 }}

This automation also sets or resets 3 helper toggle buttons depending on the values of the variables.

I grouped a couple of binary sensors that indicate whether any of the roof windows are open and I created a “template select” with select.open_window_rain_status id and with following state:

{% if is_state("binary_sensor.attic_window_open", "off") -%}
ALLGOOD
{%- elif is_state("input_boolean.rainingnow", "on") %}
RAINING
{%- elif is_state("input_boolean.rainimminent", "on") %}
RAINSOON
{%- elif is_state("input_boolean.rainexpected", "on") %}
RAINCOMING
{%- else %}
ALLGOOD
{%- endif %}

and available options:

{{['ALLGOOD', 'RAINING', 'RAINSOON', 'RAINCOMING']}}

Installation Steps

Prepare Hardware

1. Wire all components according to the wiring table above
2. Double-check all connections before powering on
3. NOTE: Touch pHAT - I connected both 5V and 3.3V pins to the 3.3V power suppy pin on the board
4. Ensure all I2C and SPI connections are correct
5. Make sure all the other pins for the display are correct. If any of them is incorrect the display won’t show
6. NeoPixel - connect VCC to 5V (3.3V will work but some of the colors won’t show well)

Prepare Files

1. Download the Material Design Icons - details in font component.
2. Create the weather_icon_map.h header file (content here)
3. Create your secrets.yaml file with your WiFi credentials
4. Update the API encryption key (generate a new one for security)
5. Set secure OTA passwords (I did not configure fallback WiFi endpoint but I did configure OTA)

NOTE: no need to do anything for the external component, the CAP1166 component code downloaded from github automatically.

Update Configuration

1. Modify the substitutions section with your Home Assistant entity IDs
2. Adjust timezone in time component if not in Europe/Dublin

More info on how to manage secrets.

Flash ESPHome

Use ESPHome Device Builder, that’s simplest. After the first flash, you can use OTA updates.

Add to Home Assistant

The device should be automatically discovered in Home Assistant:

• Go to Settings → Devices & Services
• Look for the discovered ESPHome device
• Click Configure and enter your API encryption key
• ⚠️ By default new ESPHome device is not allowed to perform any Home Assistant Actions
  • In order to:
    • change heating presets
    • change “boost” preset configuration
  • You need to go to device settings in Home Assistant and select:
    • Allow the device to perform Home Assistant actions

Verify Operation

Check that:

• Display shows boot screen and then connects
• Time and weather information appear on info page
• Indoor temperature and humidity display on heating page
• Page navigation works (forward/back buttons)
• Preset icons show current heating mode

Troubleshooting

Stuck at Boot Screen

If you’re stuck at boot screen that usually means the device cannot connect to WiFi.

Check your secrets.yaml that you have correct WiFi ssid and password. If this is correct, the best is to connect the device to your computer, open up ESPHome Web, connect to the device and open up logs. Reboot the device to see the logs from starting up and hopefully that will reveal any issues.

If no issues show up change logging level:

logger:
  level: DEBUG

Note that the boot screen will be on until connection is established with Home Assistant, so the issue might be that the device cannot connect to WiFi or it can connect to WiFi but not to Home Assistant afterwards.

Entity Status Not Updated

Check substitutions making sure that you have entered correct entity ids. For temperature/humidity sensor this should work just fine and a typo or incorrect entity id is most likely issue. Any climate entity should work for controling heating but see below.

Heating Control Not Working

If the correct preset and temperature setting is not updated - verify that climate entity ID is correct.

If the heater button doesn’t control thermostat - did you: Allow the device to perform Home Assistant actions?

While this should work with any climate control, check that preset modes (frost, boost, eco) are supported. If they are not, you might need to change config slightly to support your settings. Maybe your setting doesn’t have a boost preset - just replace boost in the configuration with what your desired setting is. The same goes for frost, eco and comfort.

Random Reboots or Crashes

Problem: Device restarts unexpectedly

Solutions:

1. Use adequate power supply (1A minimum)
2. Reduce display buffer size if running out of memory
3. Lower logger level to WARN or ERROR
4. Disable unnecessary components temporarily
5. Unplug your Electric Toothbrush charger if it uses the same USB charger … yes … the device was rebooting randomly. I used USB charger with 2 ports. While electric toothbrush charger was plugged in, it just kept on rebooting randomly. I unpluged the electric brush charger and reboots stopped - dead givaway! 🤦‍♂️

Display Not Working

Problem: Screen stays blank or shows no output

Solutions:

1. Verify SPI wiring (CLK, MOSI, CS pins)
2. Check display is using mipi_spi and model GC9A01A … or if you’re modifying this - whatever your model is
3. Verify CS, DC and RESET pin assignments match your wiring - note that not all displays have RESET, but if yours have it you should connect and configure it correctly
4. Try different rotation values (0, 90, 180, 270)
5. Check display power supply (3.3V)
6. Make sure that you have buffer configured to 25% - ESP32C6 board I have has limited memory. Unless your board has external PSRAM go with 25%
7. Test with simpler display code first - go to the list of devices and filter by display category. If your display is in the list it will have information how to set it up and will have simple display configuration.

Touch Buttons Not Responding

Problem: Touch pHAT doesn’t register touches

Solutions:

1. Verify I2C wiring (SDA: GPIO19, SCL: GPIO20)
2. Check Touch pHAT has 5V power
3. Verify I2C address is 0x2C (check with I2C scanner)
4. Adjust touch_threshold value (generally: 0x01 is most sensitive, 0x80 is least sensitive. My configuration is 0x40 - Medium. Try 0x20 first and see how it goes)
5. Look for I2C errors in ESPHome logs
6. Make sure you have external pull-up resistors!

LEDs Not Lighting

Problem: Touch pHAT LEDs don’t respond

Solutions:

1. Verify I2C communication is working (touch should work first)
2. Check LED brightness setting (increase to 100% for testing)
3. Test individual lights from Home Assistant

Temperature Adjustment Not Working

Problem: Long-press on Button D doesn’t enter adjustment mode

Solutions:

1. Verify you’re on the heating page (page 2)
2. Are you pressing it not too short and not too long? Press should be between 350ms and 2000ms long 👀
3. Check number.${heater}_preset_boost_temp number entity exists. You might not have this in Home Assistant if you’re not using Versatile Thermostat - you might need to replace this with what you want to change.
4. Ensure you’re not already in selection mode
5. Increase long-press duration threshold if needed
6. Check lambda logic in touch_d_long_click script

Future Enhancements

This project documentation will be updated with:

• NeoPixel Integration - RGB LED for ambient lighting and notifications is there and can be used from Home Assistant but it does nothing else at the moment. An option is to configure it to light up with automation.

Other Images

• Home Assistant Control

You can actually turn on and off LEDs behind buttons A-D.

• NeoPixel

And you can play with the NeoPixel.
