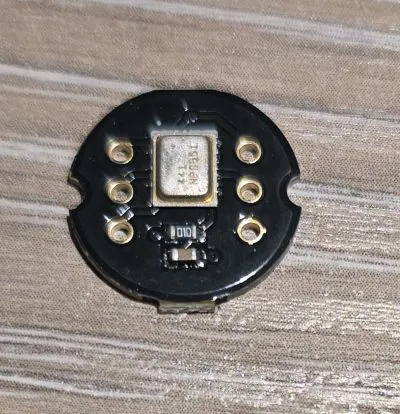

INMP441 Microphone
✅ Active 🔦 Pending
audio InvenSense Model: INMP441 📅 Acquired: Jan 2025
Omnidirectional MEMS I2S microphone module
📅Last updated:December 13, 2025(1 day ago)
Connection Types
i2s
Overview
The INMP441 is a high-performance, low power, digital-output omnidirectional MEMS microphone with a bottom port and I2S digital output interface.
The module features:
- Digital I2S interface
- High signal-to-noise ratio: 61 dBA
- High sensitivity: -26 dBFS
- Wide frequency response: 60Hz to 15kHz
- Low power consumption: 1.4mA
- Operating voltage: 1.8V-3.3V
- 24-bit data output
- Omnidirectional pickup pattern
- Small form factor
- Bottom port design
Remarks
Should be supported by I2S Audio Microphone component.
Other Images

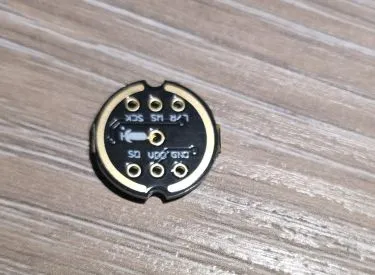

INMP441 microphone back with bottom port:
